Fusion Sensor Pack (SP0206)

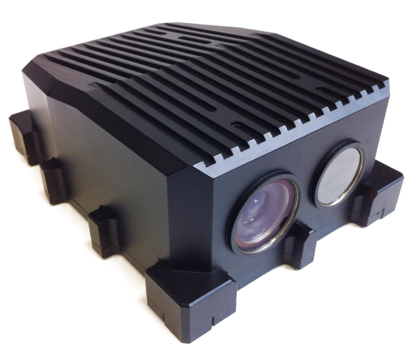

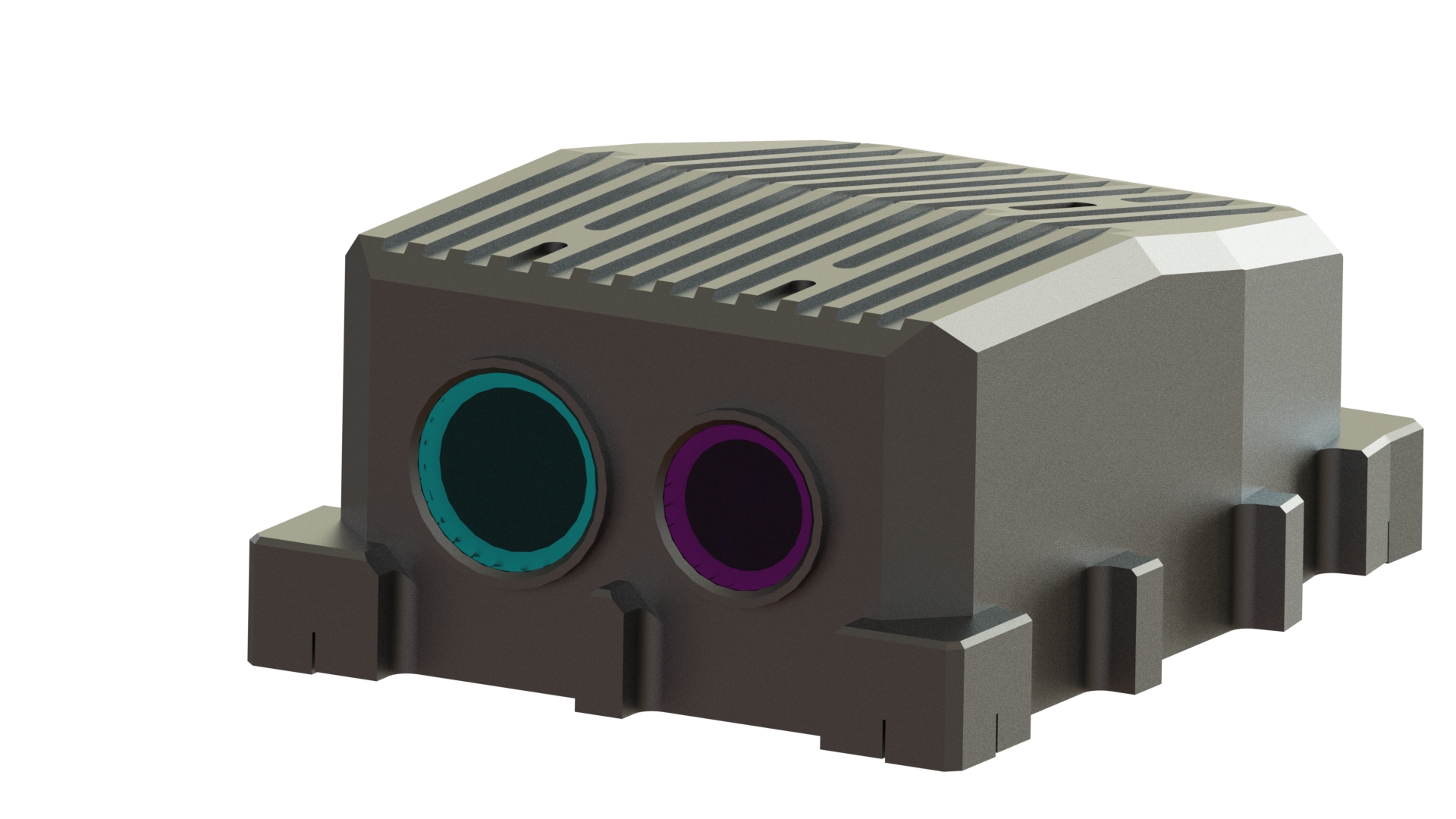

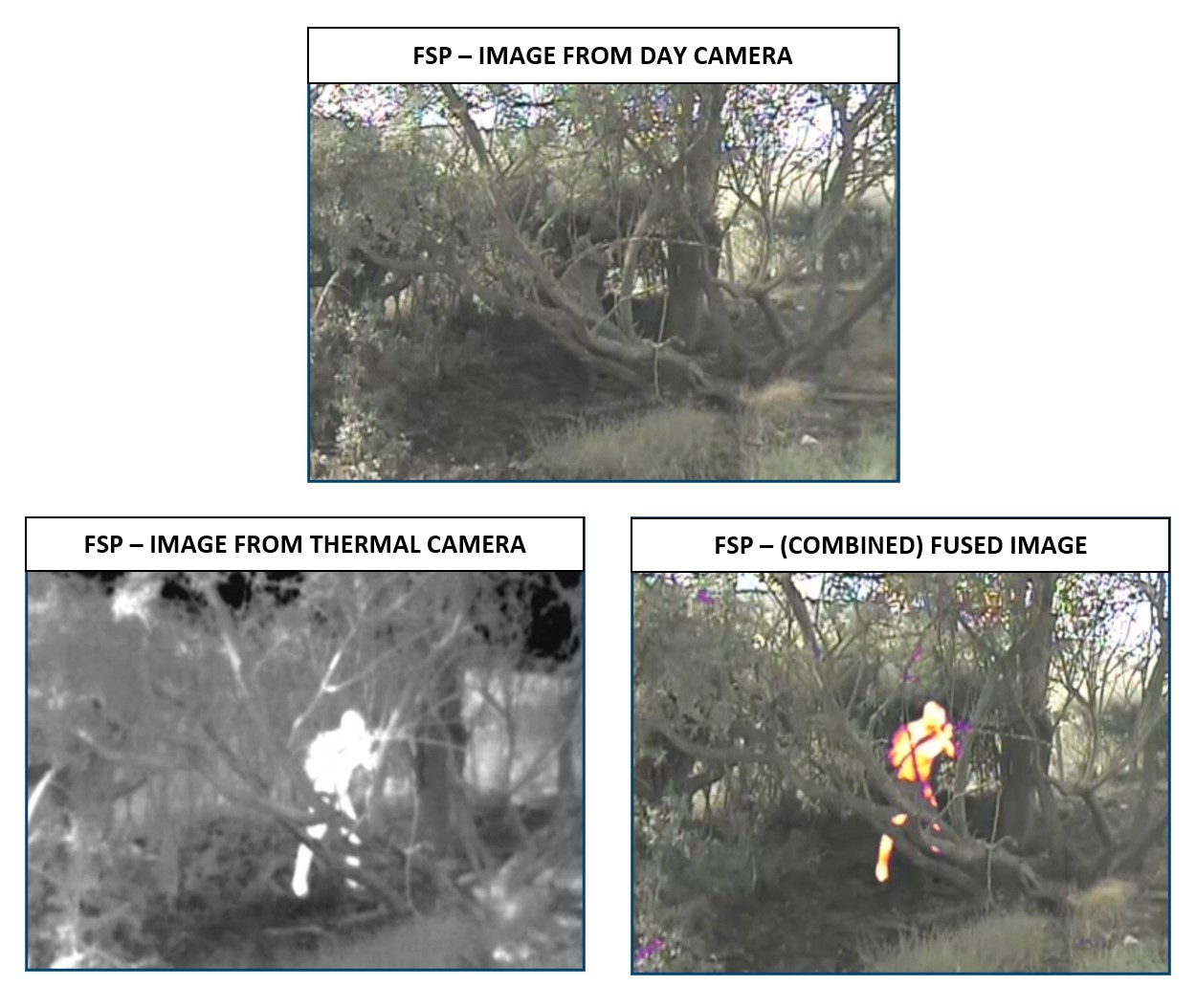

The Fusion Sensor Pack is a dual waveband, multi-purpose vision enhancer designed to be mounted externally and connected to a display. Operating modes include SWIR, Thermal, Day, Low Light, Picture In Picture or Fusion (utilising a combination of the Thermal and Day sensors). The Fusion Sensor Pack is ideally suited as a Drivers Aid offering excellent LSA and includes an internal mechanical design for mounting the sensors that significantly reduces parallax.

The Fusion Module inside the sensor pack can also be supplied as a standalone unit. The module will allow full image blend for up to 3 video sources from current and legacy equipment.

Technical Specification

Electrical

Input Voltage Range11-33V DC (MIL-STD-1275 / DEF - STAN -61-05)
Power Dissipation~6W typical
Video Outputs1.0V Peak-Peak Composite 75 ohms
Optional Digital OutputsSD-SDI (SMPTE259M)
Serial Interface RS232 (optional CANBus 2.0a/b)

Optical

Nominal Field Of View 40°
IR Window TypeGermanium, AR and DLC coated
Visible Window Type AR coated Glass

Environmental

Operating Temperature Range-40°C to +60°C (storage -55°C to +80°C)
Shock/Vibration Performance Designed to meet Mil-STD-810 / DEF-STAN-00-35
Ingress ProtectionIP68
EMI/EMC Designed to meet Mil-STD-461 / DEF-STAN-59-411
HumidityDesigned to meet DEF-STAN-00-35
ComplianceROHS compliant

Thermal Camera Specification

Sensor TypeUncooled VOx Microbolometer
Array Format320x240
Pixel Pitch 17µm
Spectral Band 8-14µm
Sensitivity (NEdT) @ f/1.0 and 23C< 50mK
Frame Rate50Hz (PAL output), 60Hz (NTSC output)

Visible Camera Specification

Sensor Type1/3” Sony Effio 960H EX-View HAD
Effective Pixels PAL (720x576), NTSC (720x480)
Resolution650 TVL
Min Illumination50 mLUX
Frame Rate50Hz interlaced (PAL), 60Hz interlaced (NTSC)

Mechanical

Weight1.2Kg
Overall Dimensions65mm x 122mm x 175mm
Unit ColourRAL9005 or customer specified
