Handguard GPMG

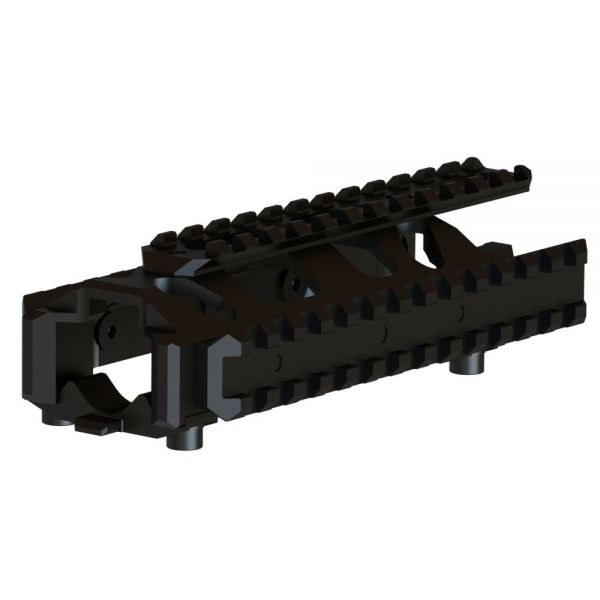

The triple Picatinny hand-guard is a lightweight, high strength product that shrouds and clamps to the gas tube.

The hand-guard has three full length Picatinny rails. A recess is machined on the hand-guard to enable the bipod to be stored in the folded position.

Reduced contact between the gas tube and hand-guard minimises heat transfer from the weapon to the Picatinny rails. The hand-guard body and Picatinny rails are manufactured from hard anodised matt black Aluminium alloy.

The hand-guard is secured in position by 2 x matt black stainless steel ‘bridge clamps’. All of the Picatinny rails can be replaced. The hand-guard is fitted to the weapon using a single hexagon key.

Technical Specification

Weight 2.12 kg
Dimensions 153 mm
Pt No


Weapon Fit

7.62mm FN Mag 58, 7.62mm L7A2 GPMG, 7.62mm M240

Rail Qty


Rail Type

Mil Std 1913 Picatinny
