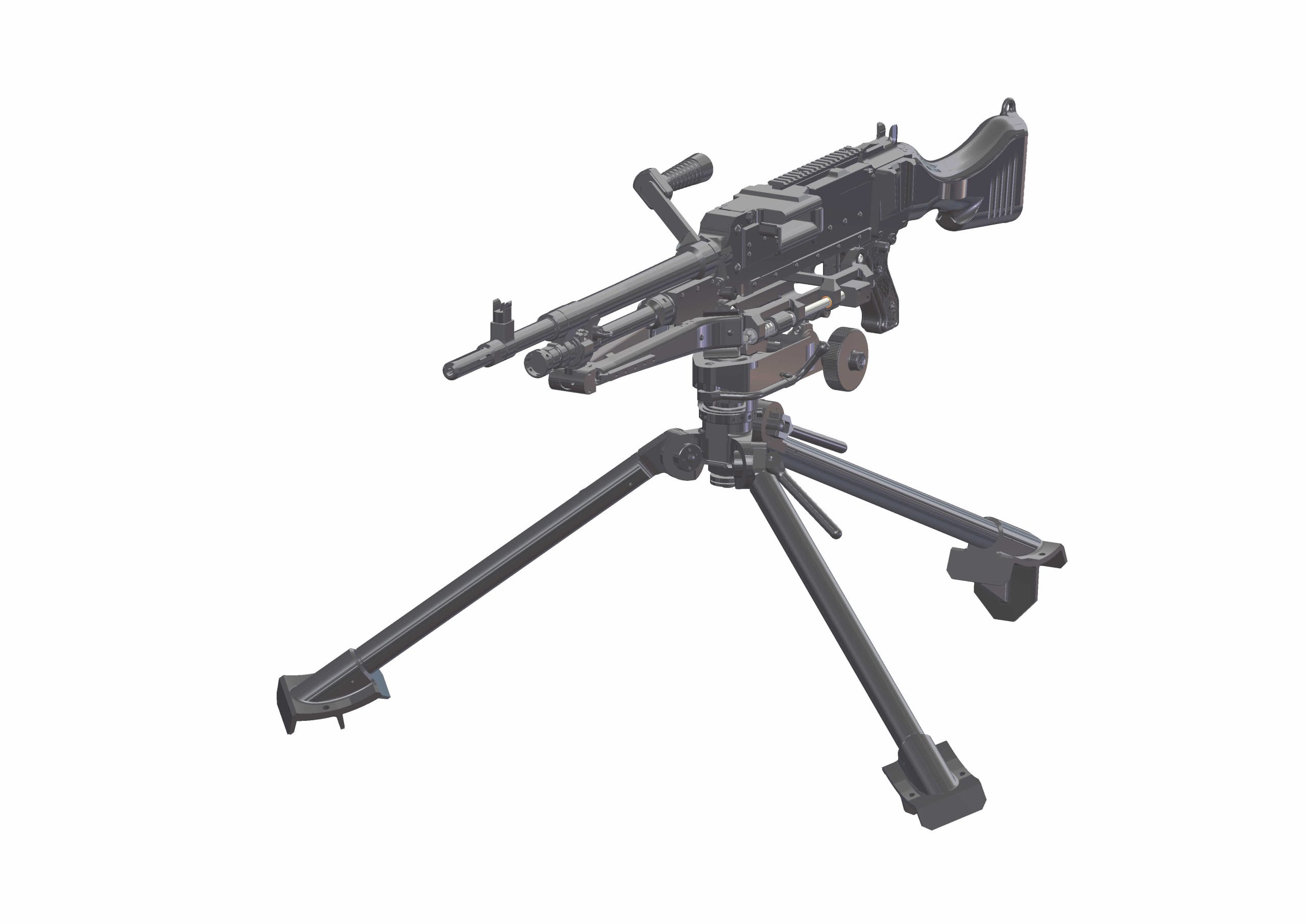

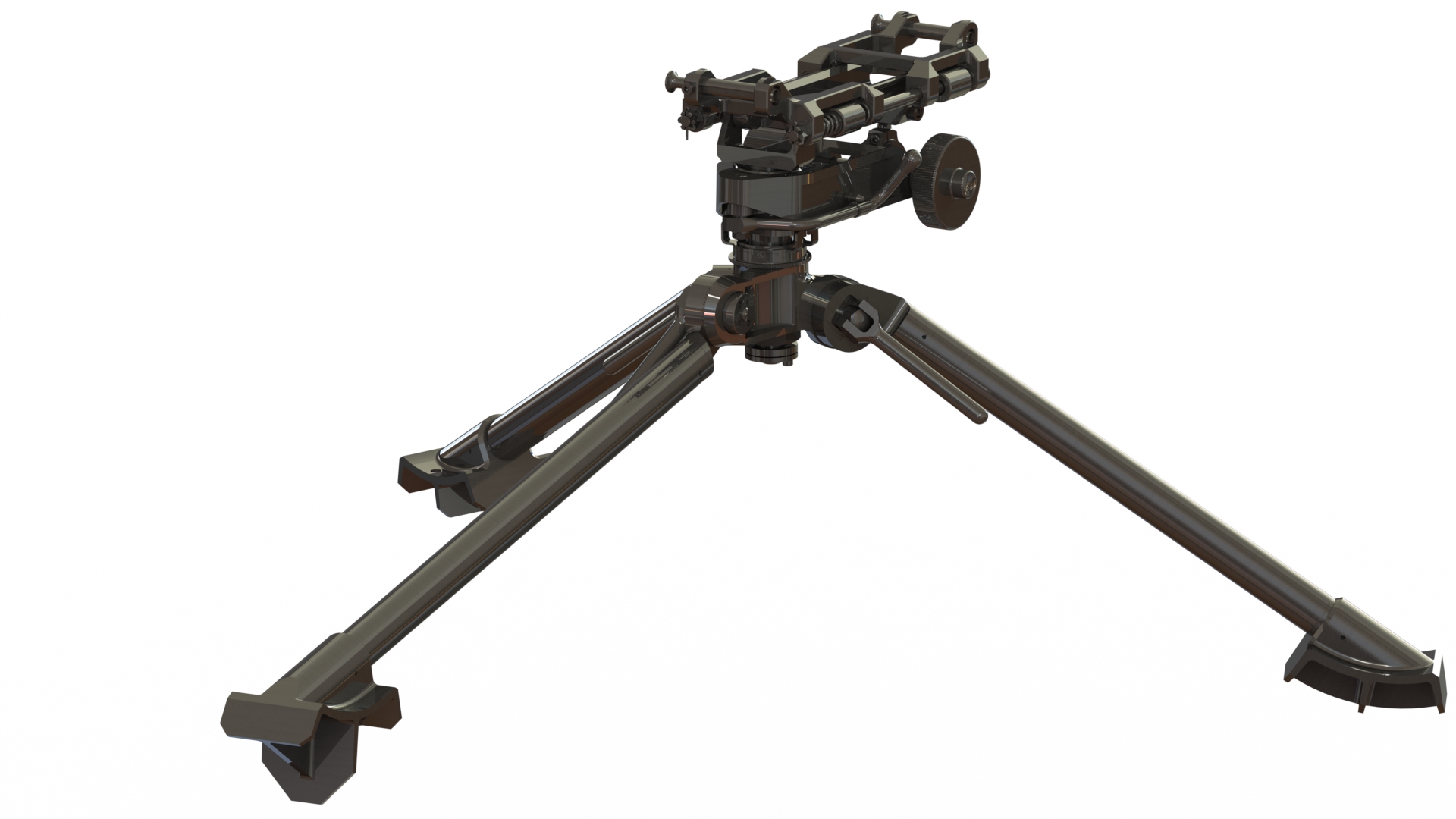

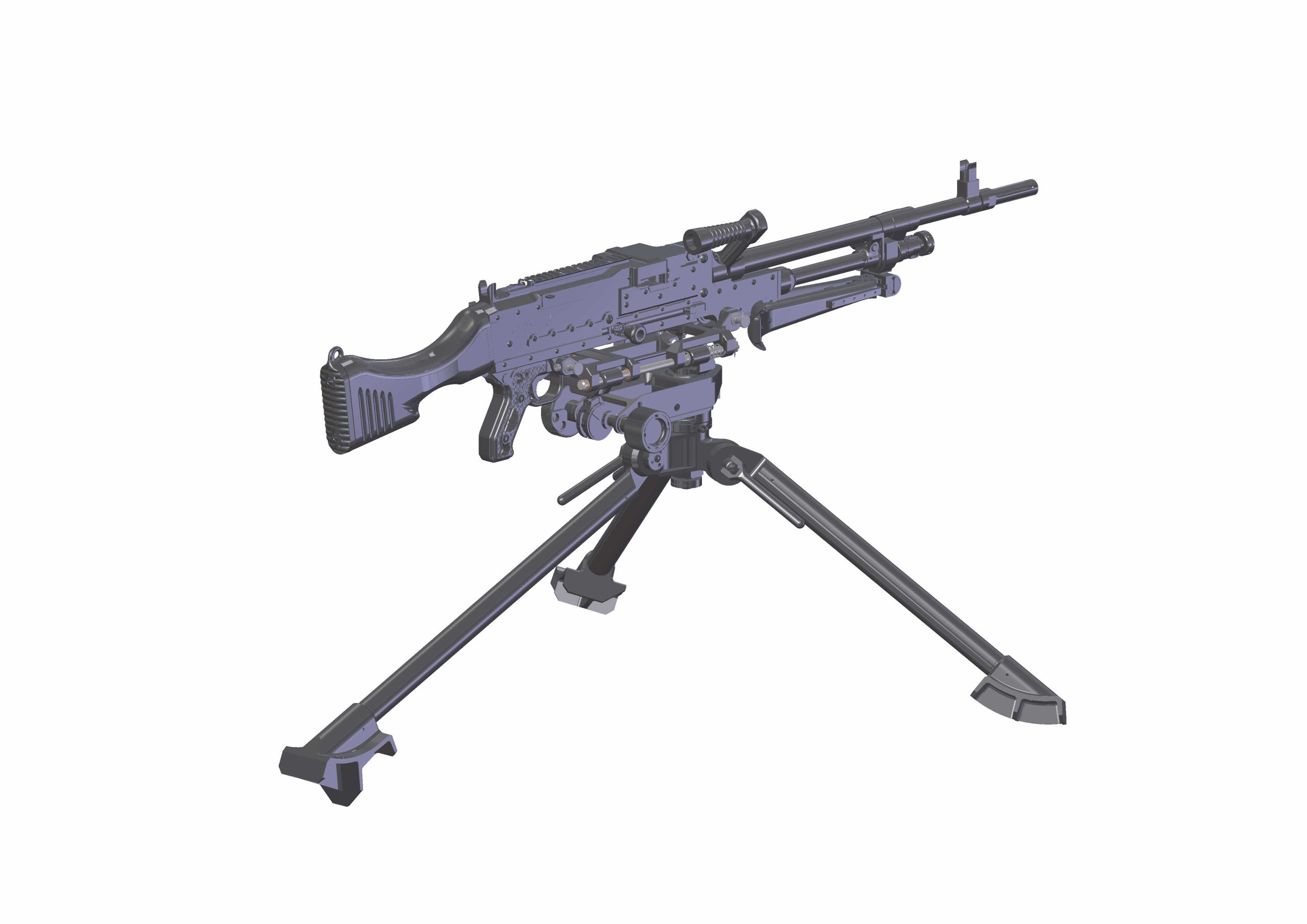

Lightweight MMG Tripod
Based on the renown L4A1 UK Sustained Fire Kit (SFK), this extremely robust, lightweight tripod can accommodate the L7A2 GPMG / M240 / FN MAG58 and other medium calibre machine guns.
Designed for ease of operation, the fine traverse and elevation mechanism is built into the tripod head – it does not need a separate T&E Mechanism, a common requirement for most tripods.
The Medium Machine Gun (MMG) tripod is a lightweight platform, giving stability to the attached weapon. It is: portable, simple, quick to mount and dismount, easy to handle and pack. For storage and transportation, the legs and cradle fold into a straight line to allow the mounting tripod to be fitted into a webbing holdall. The design incorporates its own recoil buffer unit, permits all round traverse, and has a quick release mechanism allowing free traverse, elevation and depression. The tripod can be mounted in either a low or high position, with the legs fully adjustable, allowing the mounting to be used in any terrain.
Features Include
- Fine adjustment in 2.2 mil increments
- One handed operation
- Integrated recoil and runout buffering cradle
- Optional traverse limiting stop
- 5.56mm Minimi compatible
- 338 SIG Sauer MG compatible
Technical Specification
| Weight | 9.5 kg |
|---|---|
| Pt No | 21279 |
| Traverse | 6400 mils (w/o arc stop) |
| Weapon Fit | 338 SIG Saur MG, 5.56mm L110A2 LMG (Minimi), 7.62 PKM, 7.62mm GPMG, 7.62mm M240, 7.62mm Mag58 |
| Recoil/Runout Buffering | Yes |
| Fine Traverse | 200 mils (cradle locked) |
| Fine Elevation | 600 mils (cradle locked) |
| Control Click | 2.2 mils |
| Control Lock | One handed |
