Mount Assembly (L48A1)

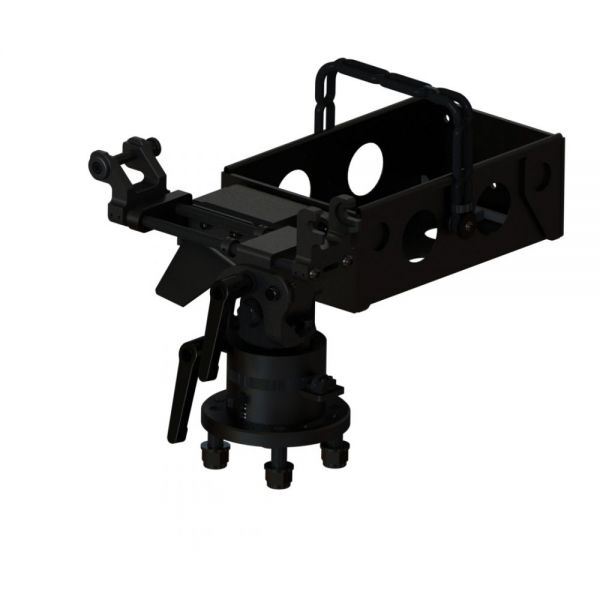

The mount assembly (6581) is a complete buffered machine gun mount designed to fit onto a rail trolley on the smaller naval vessels.
The mount comprises of a buffered mount attached to a pivoting yoke, capable of holding a 7.62mm GPMG.
Attached to the cradle is an ammunition holder.
Technical Specification
| Weight | 15.2 kg |
|---|---|
| NSN | 1005-99-929-7973 |
| Pt No | 6581 |
| LNA | L48A1 |
| Weapon Fit | 7.62mm L7A2 GPMG, 7.62mm M240, 7.62mm Mag 58 |
| Elevation | +36.5 degrees |
| Depression | Set by arc stops |
| Traverse | Approx. 70 degrees each side of centre |
