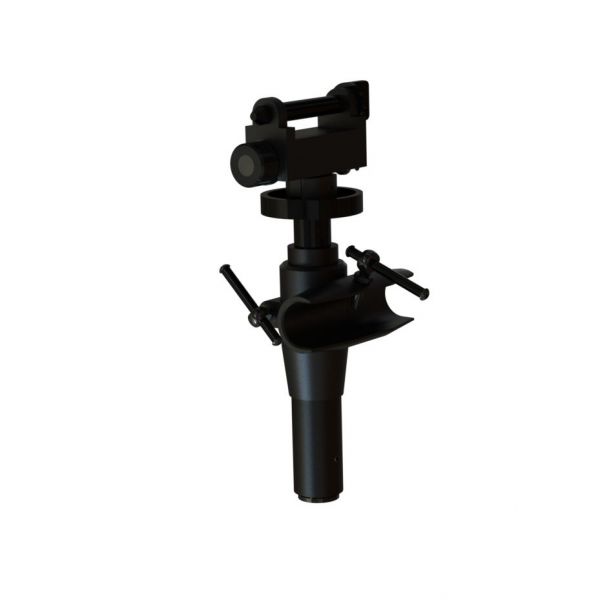

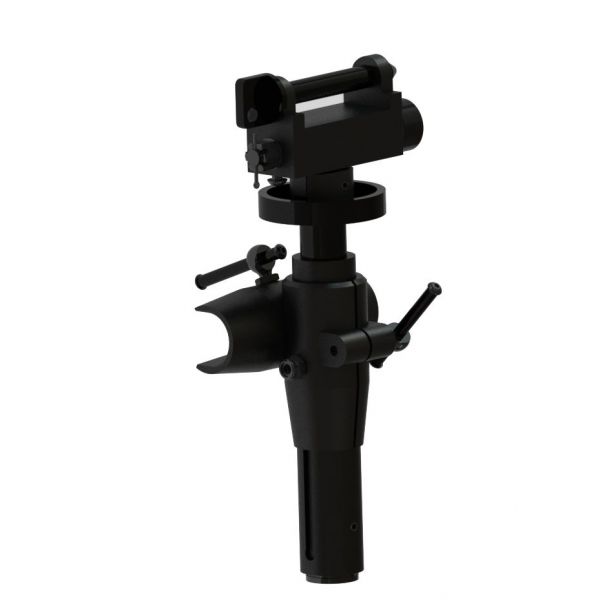

T&E Mechanism

The improved T&E mechanism is designed to be used on a tripod, giving both rapid and fine adjustment to the parent weapon.

The improved T&E mechanism features quick release coarse adjustment in both elevation and azimuth together with fine adjustment via a knob for azimuth and a hand-wheel for elevation.

The improved T&E mechanism can be readily fitted and removed by the user to the tripods without any alteration.

Technical Specification

Weight 2.12 kg
NSN

1005-99-005-0672

Pt No

1534

Weapon Fit

Tri-pod (M3) L13A2 – HMG 0.50in. M2 L110A1, Tri-pod (M3) L13A2 – HMG 0.50in. QCB L111A1, Tri-pod 40mm (H&K) GMG
