UGM (L20A4)

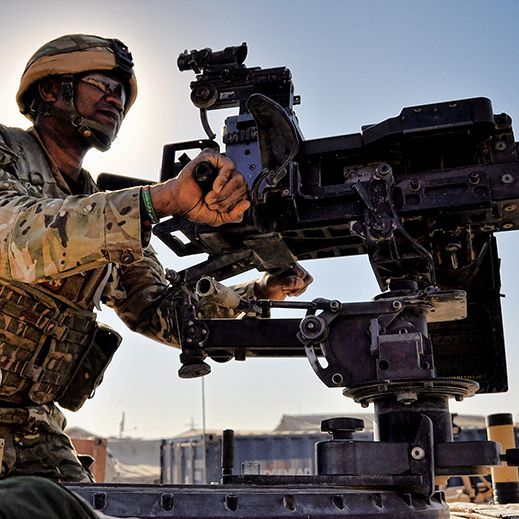

The Universal Gun Mount (UGM) is currently utilised on both land and sea based platforms where it is attached directly to a traversing ring of the parent vehicle or to a re-enforced hard point on the side of a vessel.

The UGM is capable of accepting the following range of weapons together with their dedicated soft mounts:

  • Light Machine Guns (e.g. Minimi/M249)
  • Machine gun (e.g. L7A2 GPMG/FN MAG 58/M240, M60, MG3, PKM)
  • Twin L7A2 GPMG Mount
  • 12.7mm HMG (e.g. M2HB, L110A2 QCB, M3D)
  • 40mm Grenade Machine Gun (e.g. H&K GMG, MK19)

In addition to these weapons, the UGM can be readily fitted with an adaptor to allow mounting of anti-armour weapons and 20mm cannon.

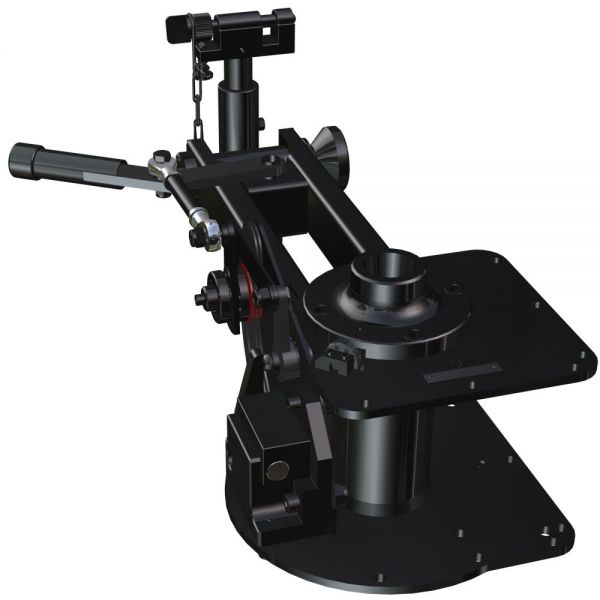

The UGM is designed to provide a solid, backlash-free firing platform when clamped; fine adjustment being made by means of a fine control Traverse and Elevation mechanism (T&E). This provides exceptional single shot accuracy coupled with the ability to rapidly engage or track targets.

The UGM is modular, permitting the attachment of a variety of fitting kits and ancillaries; from frontal armour to folding interface equipment.

*Note 1. The maximum elevation and depression detailed above is the limit of the UGM control arm imposed by the quadrant in the elevation brake plates. In practice, the maximum elevation and depression will be less than quoted, dependant on the type of weapon and soft mount fitted. The depression of the weapon may well be limited by the barrel of the weapon or its soft mount coming into contact with features such as a front ballistic shield or the vehicle superstructure. Further limitations include the practicable ability of the gunner being able to view the target area through the sights.

Technical Specification

Weight 21.8 kg


Pt No




Weapon Fit

0.50in MG QCB L111A1, 40mm GMG L134A1, 5.56mm L110A2 LMG, 7.62mm L7A2 GPMG


30 degrees nominal


25 degrees nominal

MPI Movement

250mm (10in) at 500m


65 degrees either side of centre line. Total: 130 degrees
