Mount Assembly (L69A1)

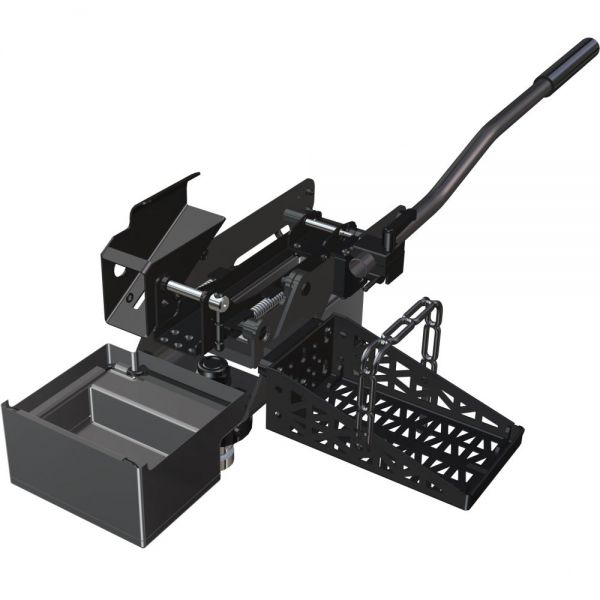

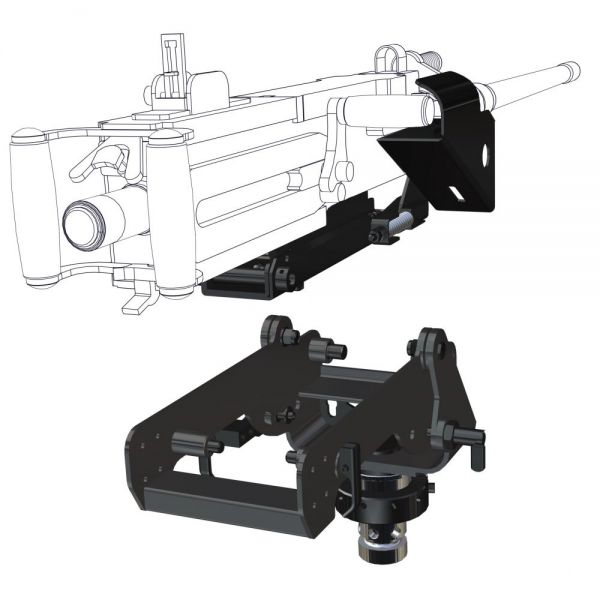

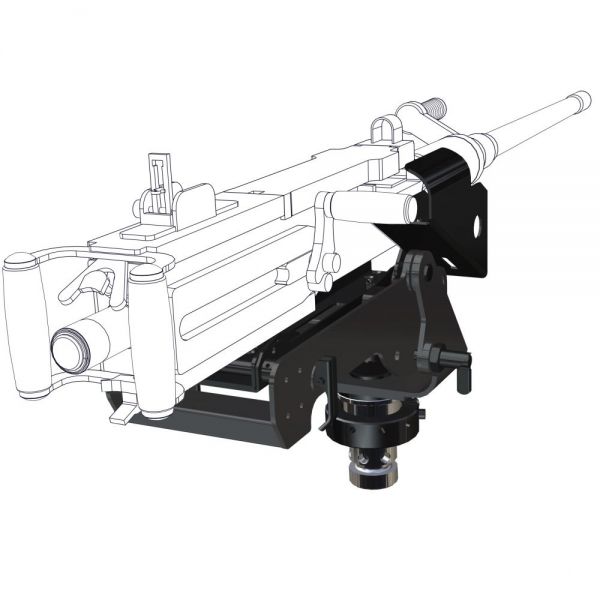

The HMG softmount assembly (10968) is a buffered machine gun mount designed to fit the 0.50″ M2 / Quick Change Barrel HMG. It has been designed for maritime use and is predominantly manufactured from stainless steel to resist salt-water corrosion. ┬áThe HMG softmount assembly comprises of a buffered mount, which reduces the shock of recoil and runout during firing. The assembly mounts to the ISTEC parallel spigot receiver pot (5080) which is mounted to the vessel or the ISTEC Mk19 Minigun mount (9118).

Technical Specification

Weight 28 kg
NSN

1005-99-168-9553

Pt No

10968

Weapon Fit

12.7mm L1A2 M2 HB, 12.7mm M2HB HMG, 12.7mmL111A1 QCB

Elevation

+34 degrees

Depression

-16 degrees

Traverse

Set via arc stops
